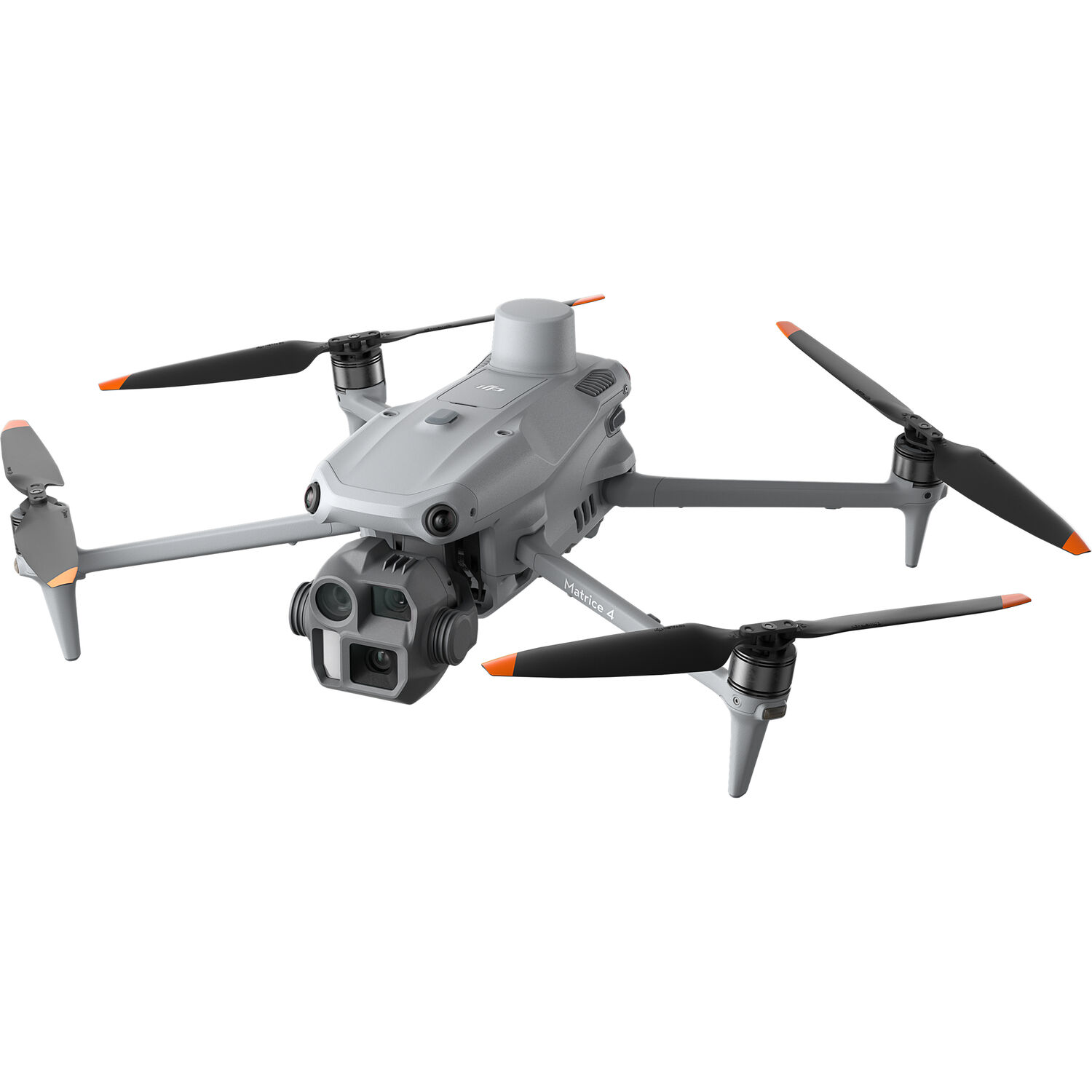

Smart Construction Drone

$10000.00

- +

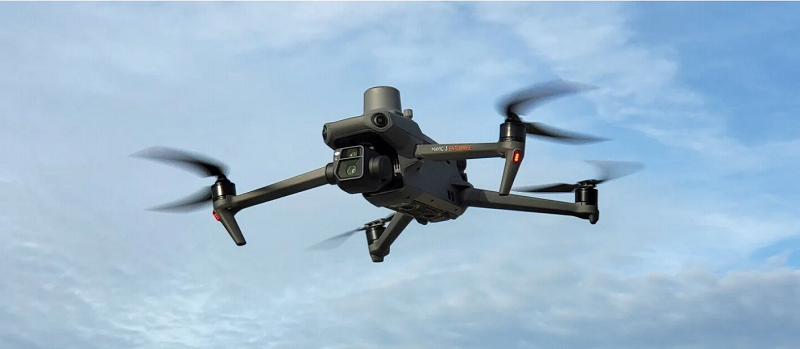

Why should you fly? A high precision mapping drone like the Mavic 3 Enterprise can be 50% faster than a walking survey, and its boots never get muddy. Drone mapping helps with planning, sends data as you progress and gives you information that you can turn into efficiencies and better reporting.
Smart Construction customers benefit from the use of drones by achieving faster, safer, and more efficient surveys, substantial operational cost savings, and enhanced data accuracy, while also gaining the ability to continuously monitor and showcase project progress through high-quality aerial imagery.

Feature highlights and benefits

Easier and faster surveys
Easier and faster surveys

Why walk steep slopes and muddy flats for hours when you can fly them in 30 minutes? A Smart Construction drone captures quantities for production tracking and billing from the air without worrying about potential injuries from personnel walking the job site to do a manual survey.

Unlimited tracking
Unlimited tracking

Fly as much as you want to track your production. Drones enable you to gather and analyze data throughout each phase of your project. Measure daily, weekly or when it makes sense for your operations.

Enhance your team’s capabilities
Enhance your team’s capabilities

Elevate your survey teams to new levels of clarity by integrating frequent aerial mappings into your workflow. Drone surveys incorporate hundreds of thousands of points instead of hundreds of points with traditional surveys.

Not just for surveys
Not just for surveys!

Drones allow you to do more than just run missions. With capabilities to take photos and video from up to 400 feet above ground level or under bridge decks, drones can be used as pre-job verification or keeping your stakeholders up to date.

What’s in the box

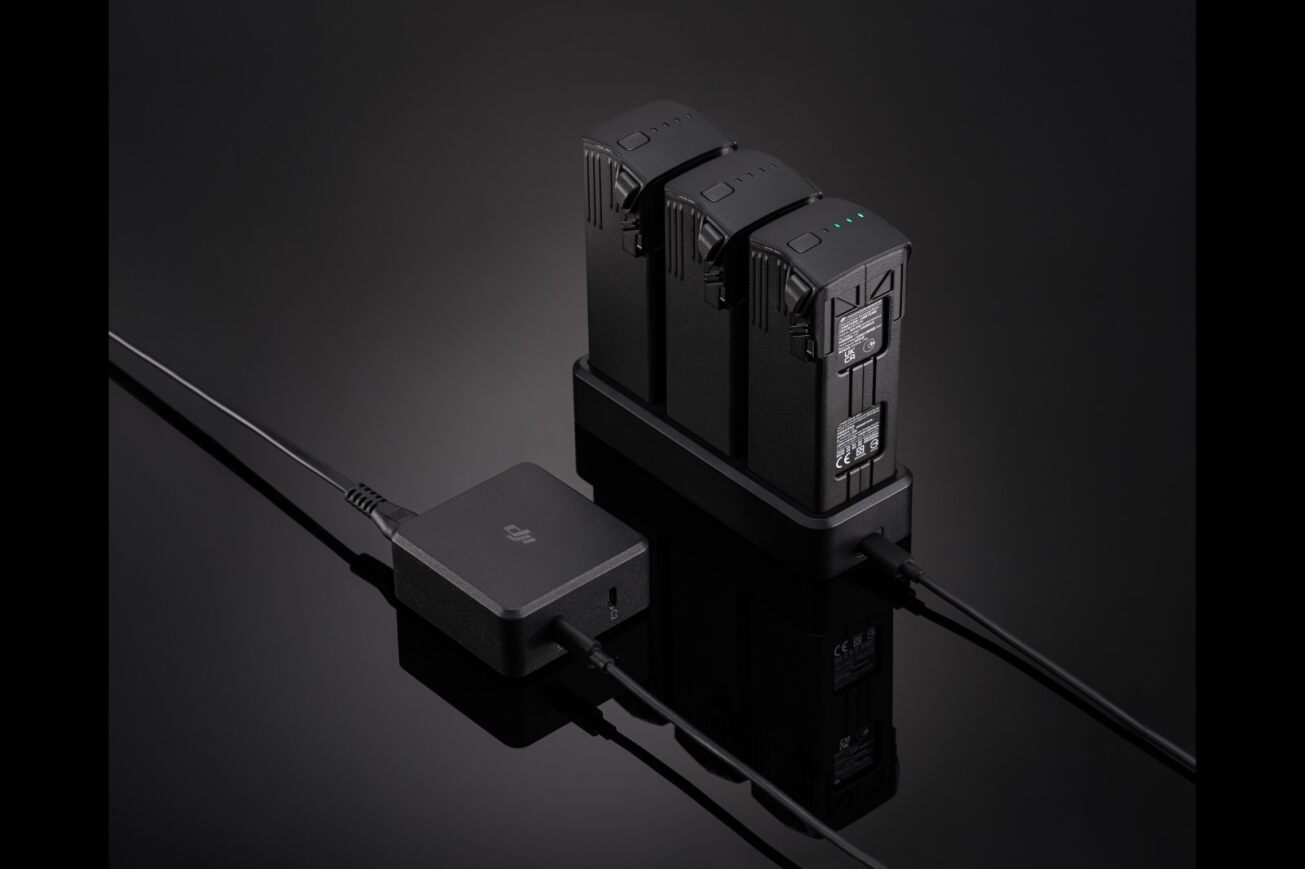

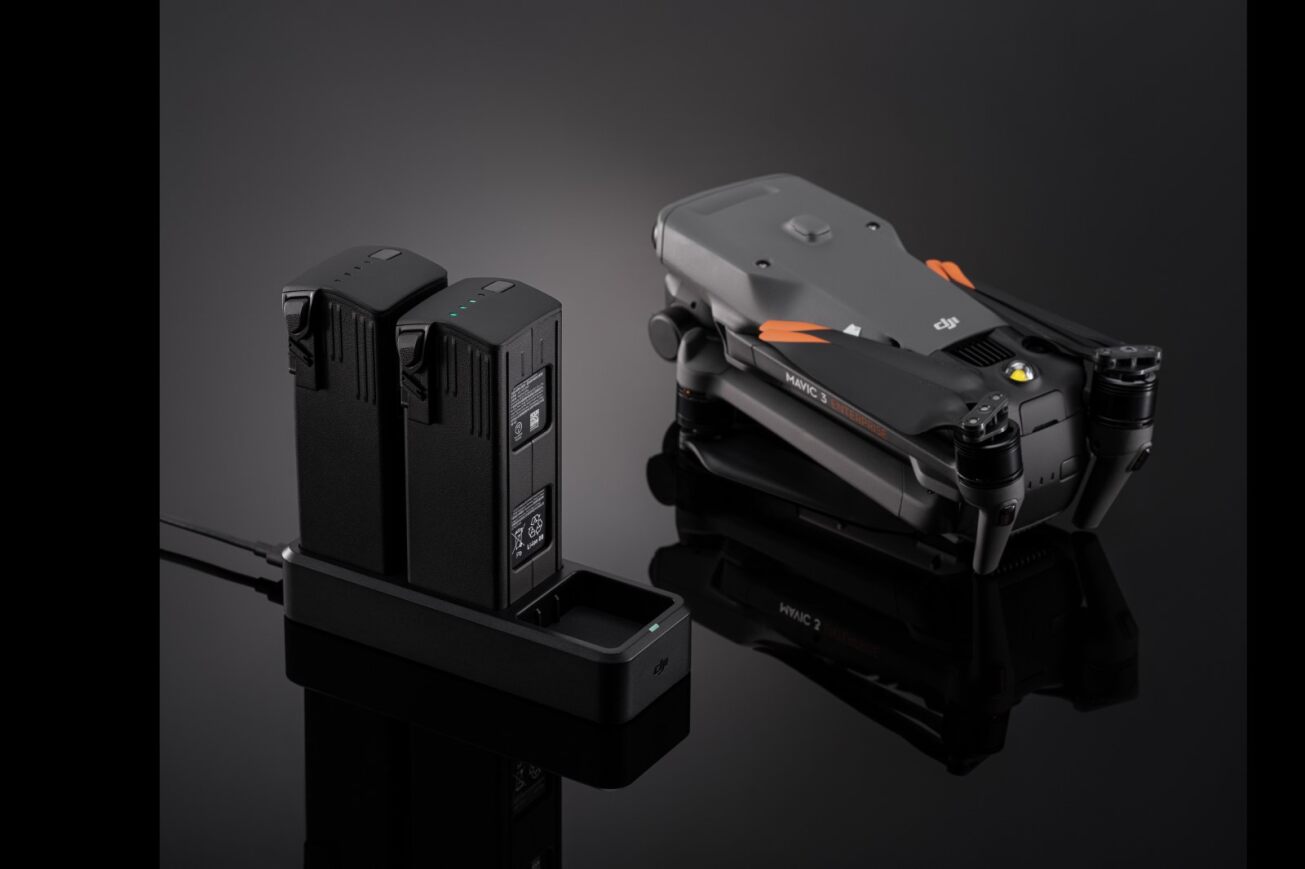

  • (3) rechargeable lithium-ion batteries a
  • USB C/USB A, USB C/USB C b
  • 120 W AC power adapter c
  • Charging block d
  • Gimble protector e

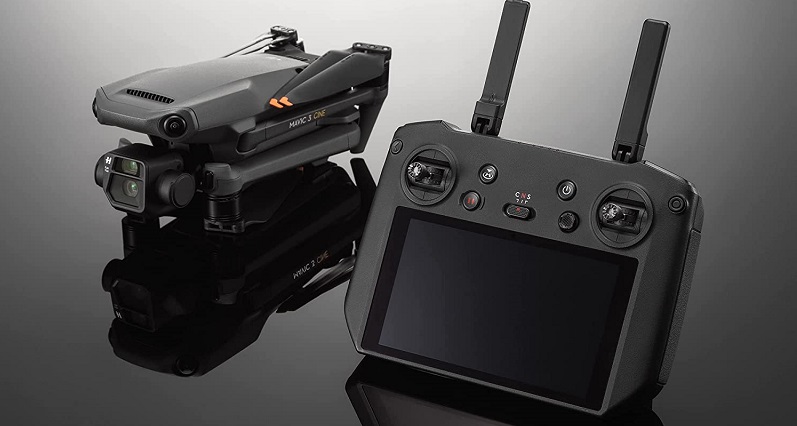

  • Controller f
  • Drone body g
Watsbox Image

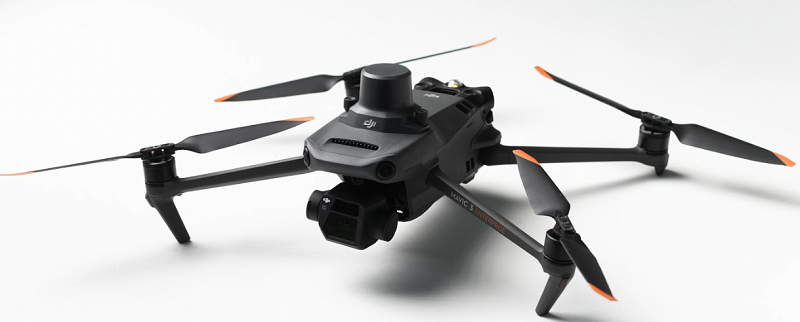

  • RTK h
  • Case i
  • 6 propellers (2 spare) j
  • (2) AeroPoint ground control point unit k
  • Two year manufacturer warranty

Specification

Feature Specification
Max Flight time 45 min *
Camera fidelity 4,000,000 px
Internal storage capacity N/A (uses external SD card)
Airframe weight 915 g
Dimensions folded (without propellers) 221×96.3×90.3 mm (L×W×H)
Dimensions unfolded (without propellers) 347.5×283×107.7 mm (L×W×H)
GNSS GPS+Galileo+BeiDou+GLONASS
Speed 15 m/s (normal mode)*
Operating temp range -10° to 40° C (14° to 104° F)
Photo resolution Effective pixels: 20 MP
Airframe battery charge time When using the DJI USB-C Power Adapter (100W) with the DJI Mavic 3 Battery Charging Hub (100W), it takes approximately 1 hour and 10 minutes to fully charge an intelligent flight battery. When charging the aircraft directly with the DJI USB-C Power Adapter (100W), it takes approximately 1 hour and 20 minutes to fully charge an intelligent flight battery. has context menu
Video res H.264, 4K: 3840×2160@30fps, FHD: 1920×1080@30fps
Controller battery type Internal, Li-ion (5000 mah& 7.2V)
Controller operating time Approxiamately 3 hours
Controller charge time (internal) Approx. 1 hour 30 minutes (with the included DJI USB-C Power Adapter (100W) only charging the remote controller or a USB charger at 15V) Approx. 2 hours (with a USB charger at 12V) Approx. 2 hours 50 minutes (With the included DJI USB-C) Power Adapter (100W) charging the aircraft and remote controller
Max distance from controller FCC: 15 km (unobstructed, free of interference)
Collision detection Yes
Auto land Yes
