Smart Construction Dashboard

Visualize your data and know where you are today to measure and make decisions on where you want to be tomorrow. By combining 3D design data with aerial mapping and intelligent machine data, you can confirm quantities and see progress each day.
Dashboard is designed to be used daily by the contractor’s ops team as the go-to solution for visualizing the status of the site. Using 3D design data with aerial mapping and IMC data, you can confirm quantities and visualize progress. Have a stockpile you captured with the drone and want to know the volume? Simply click around the perimeter and get your quantity. Want to calculate the cut/fill of the site, design vs. actual, and print out a color-coded grid map – can do. Tilt or rotate the model to gain new perspectives.
Purchase Try now Free for 30 days
FAQ

Feature highlights

Measure volume quantities
Measure volume quantities

Easily quantify volumetric production measurements for the whole site or defined areas of interest: initial survey vs. design, today vs. design, or comparing any day in-between.

As-built data
As-built data

Receive daily progress updates from machine as-built data with your Komatsu Intelligent Machine Control machines. Measure progress between drone flights and as-built data. Fly less often with progress reporting directly from your machines.

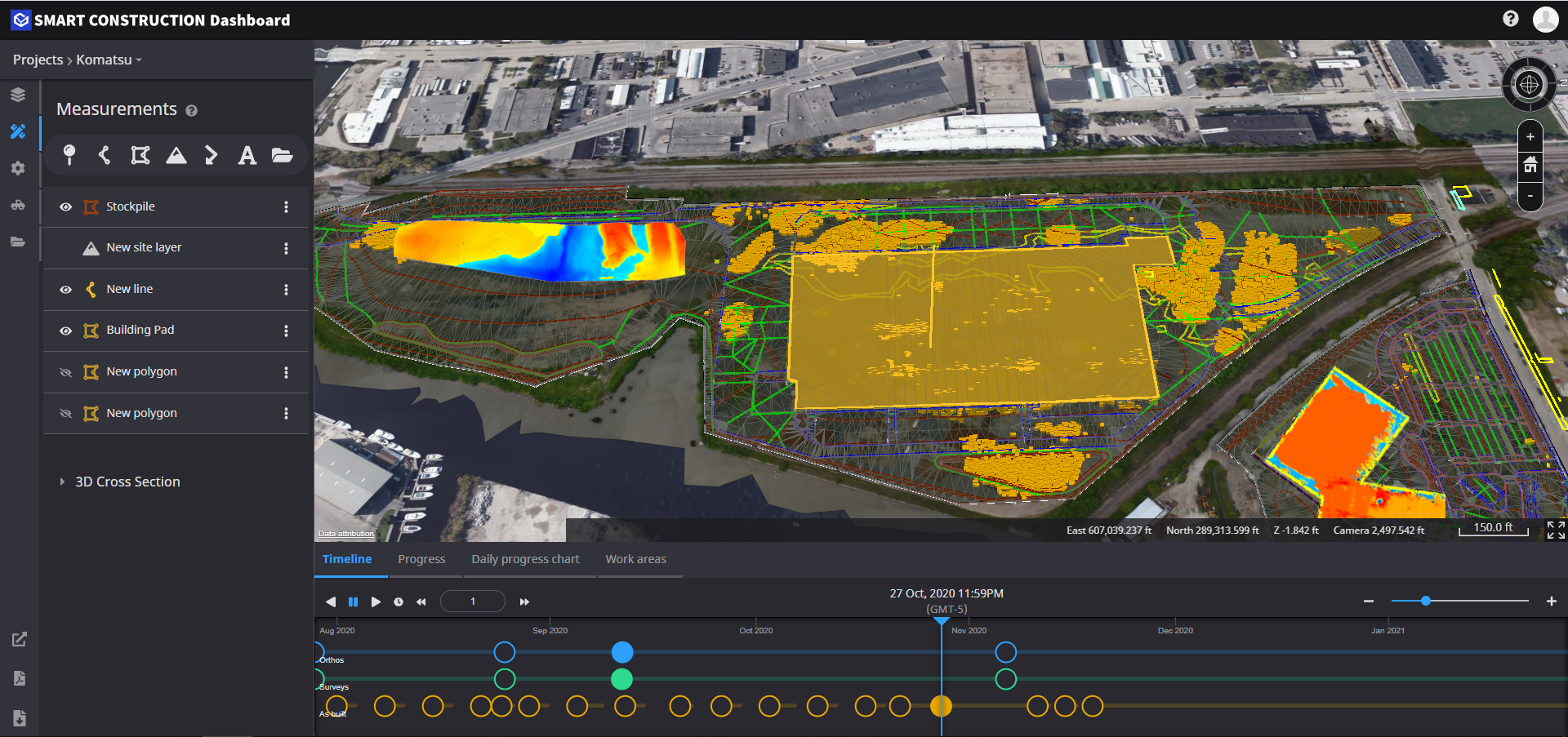

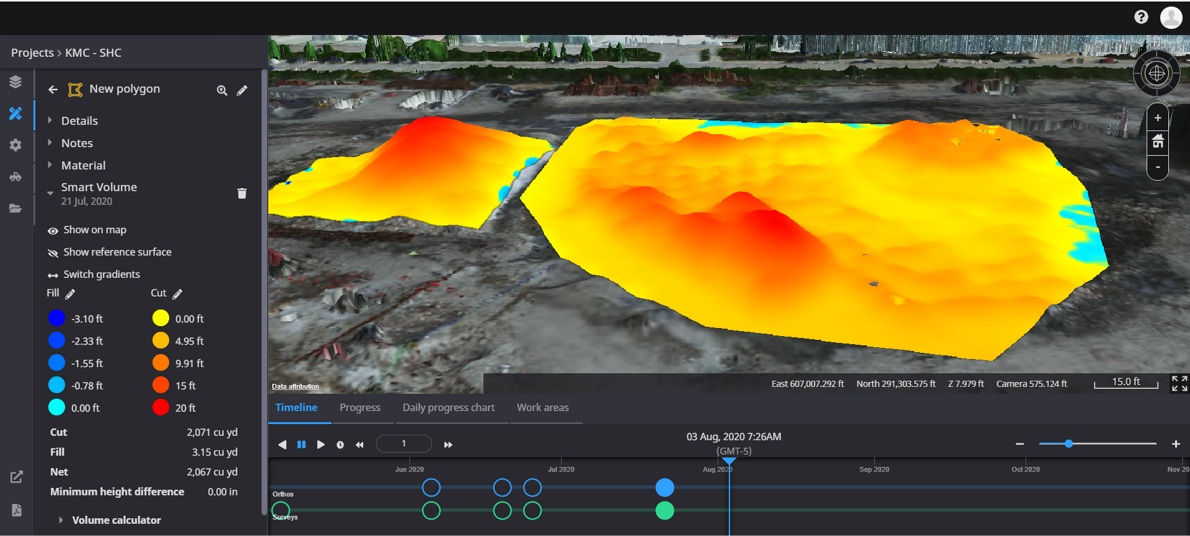

Measure volume quantities, stockpiles and track site
Measure volume quantities, stockpiles and track site

Users can make stockpile measurements in a snap for material quantities, reporting in terms of volumes, density/mass and even assigned value.

Track site progress
Track site progress

Watch your site progress with timeline functions, including playback, in terms of whole-site visuals, cross-sections and individual measurements.

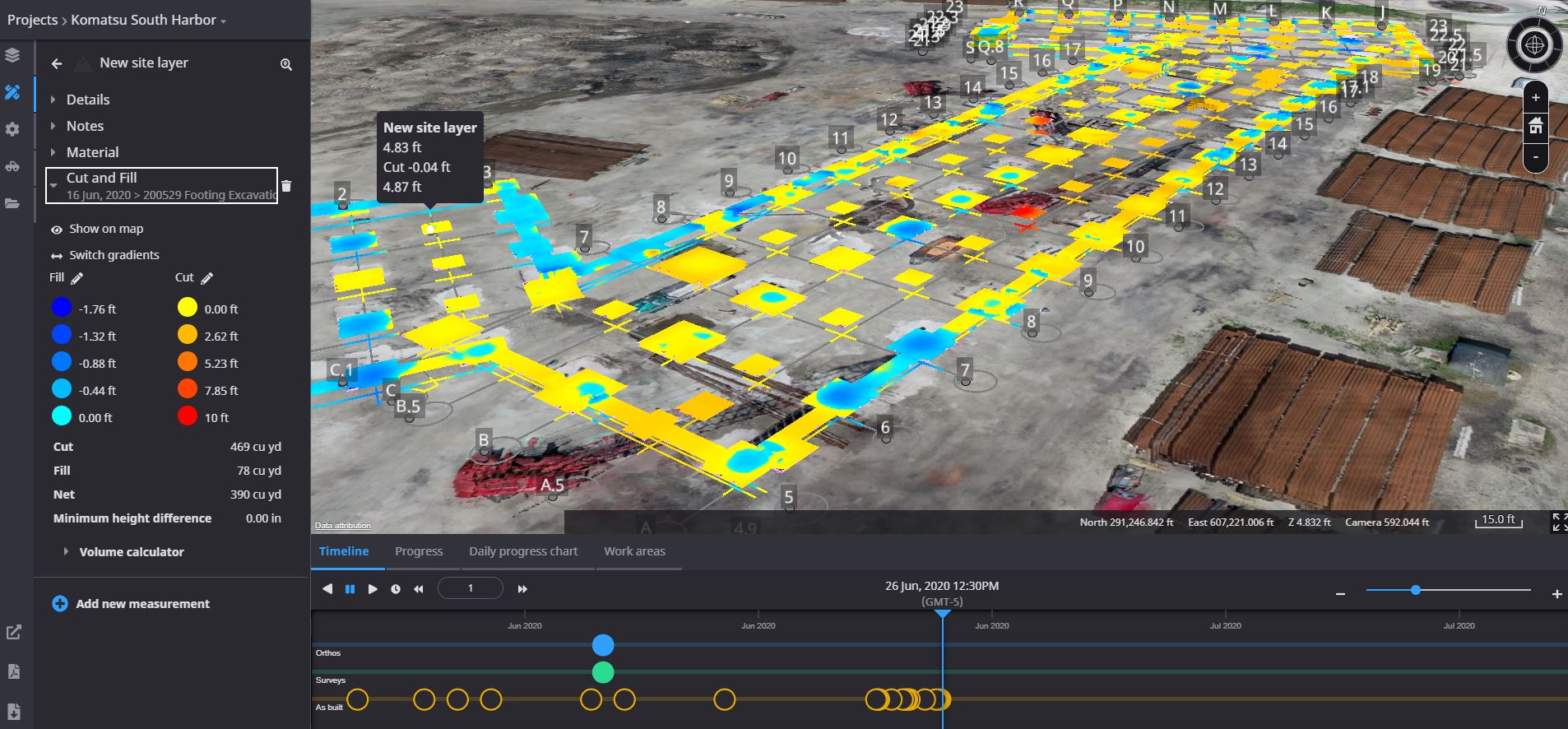

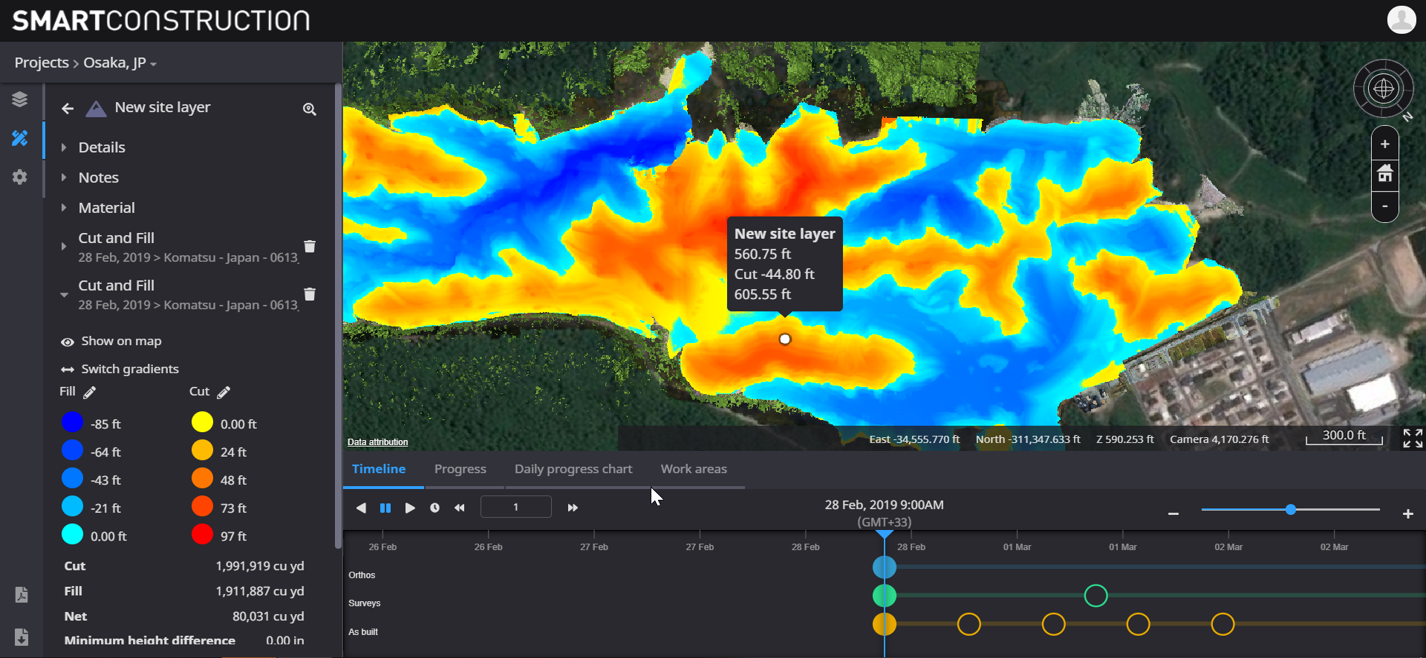

Cut/Fill color mapping
Cut/Fill color mapping

Easily generate industry-standard cut/fill color mappings for staff to visualize material movements, creating standardized reports for download, email or print.

Cloud-based dashboard 3D design data
Cloud-based dashboard 3D design data

Visualize your job site in 3D with design data, aerial mapping (drone) data and machine as-built data all in one easy-to-integrate location. Unlimited number of collaborators and no special program or computer required.

How our services can transform your processes

Progress measurement to invoice

Cloud-based dashboard 3D design data
Save time

Up to 2 weeks saved*

Cloud-based dashboard 3D design data
Keep working

No machine down time

Cloud-based dashboard 3D design data
Save current

Invoicing made easier

*Assumes traditional survey processes and job site quantity captures via truckload count

Specifications

Support Data type File format
Design dxf, xml, tp3, tn3, ttm, svd, dsz
Linework dxf, xml, tp3, svl, dsz
Survey dxf, xml, txt, csv, las, laz
As-built dxf, xml, txt, csv, las, laz
Ortho tif, tiff
DTM/DSM survey tif, tiff (Multiple files required)
Vector overlay czml, kml, kmz, json, geojson, topojson
Building Design dxf, xml, tp3, tn3, ttm, svd, dsz
Discover_SCDashboard
download icon

Testimonial

Day-to-day, we utilize Dashboard to calculate yardage based on machine as-built information. Billing-wise, this helps ensure that we get paid for the work performed and keeps our owners happy.

-Joel Brewton, Vice President Asset Management , Castle Energy

Purchase

Cart

CoreOfferingSmart Construction Dashboard
1
Tax is calculated at checkout
$ 0

Not ready to commit to annual? If you purchase monthly and decide you want to save, we will prorate your purchase.

FAQ

Knowing where you are today by ingesting the various 3D data streams allows you to measure and make decisions on where you want to be tomorrow. By combining the 3D design data with aerial mapping and intelligent machine data, you can confirm quantities and visualize progress. Have a stockpile you captured with the drone and want to know the volume? Simply click around the perimeter and get your quantity. Want to calculate the cut/fill of the site, design vs. actual, and print out a color-coded grid map – can do. Spin or rotate the model to gain new perspectives. Smart Construction Dashboard is designed to be used daily by the contractor’s ops team as the go-to solution for visualizing the status of the site. Talk to our experts and discover how this is a must-have for all your job sites.
Yes, Dashboard can accept design files in the following formats: dxf, xml, tp3, tn3, ttm, svd, and dsz. Furthermore, multiple design files of a mixed file type can be imported into Dashboard.
There are unlimited seats within your organization. Meaning that Dashboard does not restrict how many users can access it.
We provide user permissions with four different levels of access. These roles are Super Administator, Administrator, Manager, and Staff. Each role has specific functions available to them.
Yes, we provide this self-service capability in the My Subscriptions page, after you purchase your solution. Licenses can be modified to meet the ever changing needs of your business. Make sure Dashboard is working when you are working.
Yes, we have survey and cloud editing tools that help you to refine your surface accuracy.
No, you can track progress automatically in Dashboard with your Komatsu IMC machines. When you are ready to fly, you can add drone processing capabilities to your subscription.
Yes, export is supported in Pointcloud, xml, csv, and dxf.
Yes, in addition to the user level permissions, there are also project level permissions. These roles are Site Supervisor, Operator (Leader), Operator (General), and Staff (Viewer).  Each role has specific functions available to them.
