Smart Construction Edge
Feature Benefits & Highlights

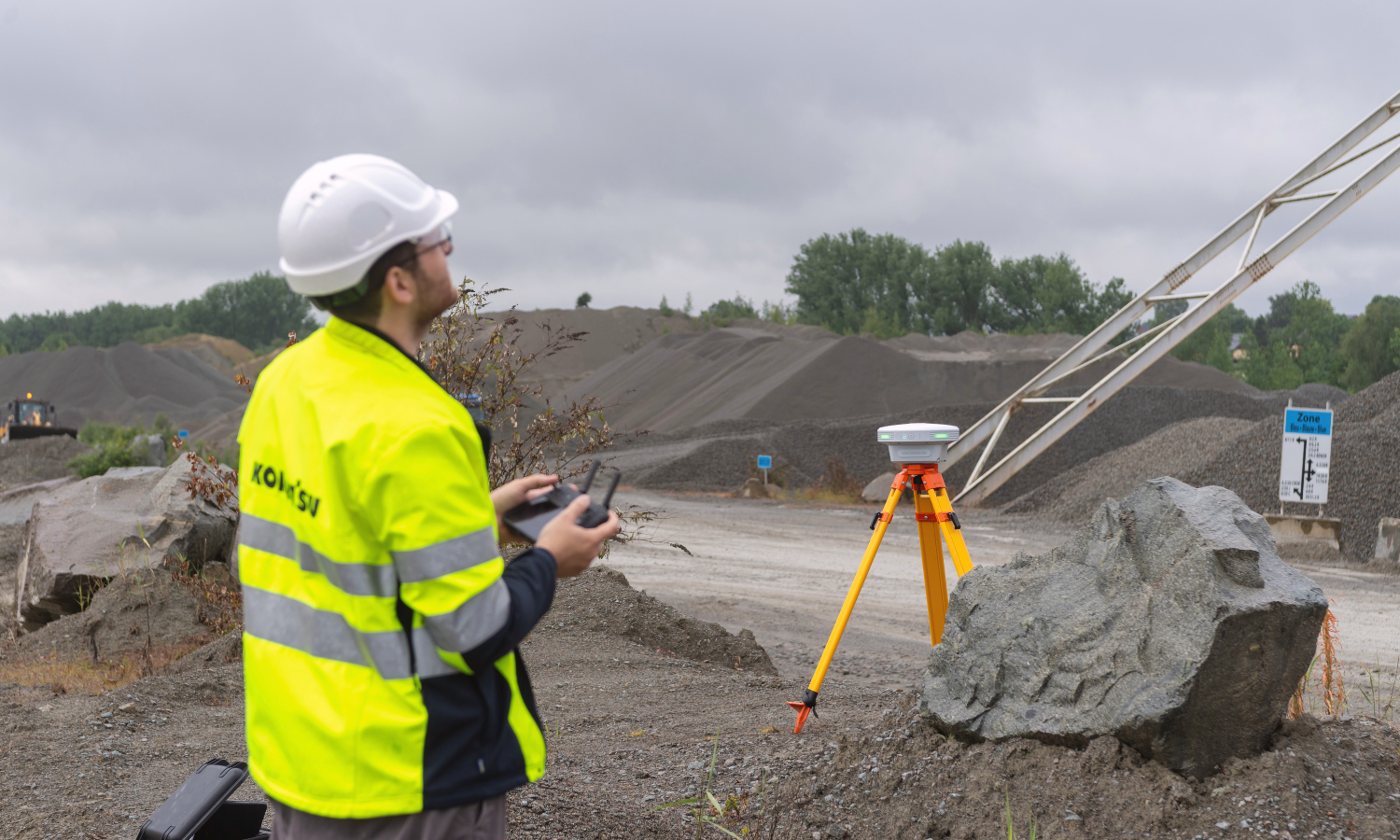

Easier, faster and safer surveys
Acquiring terrain data by drone photogrammetry and then performing site analysis with Smart Construction Dashboard helps you make decisions faster. Plus, drone flights are easier and safer than walking surveys. Smart Construction Edge enables you to utilize your drone data faster.
Rapid 3D site availability
Smart Construction Edge simplifies the process of getting drone data into Smart Construction Dashboard for analysis. Its processing power and cellular capability (requires cellular plan, free for first three years) means you can likely use your data the same day.

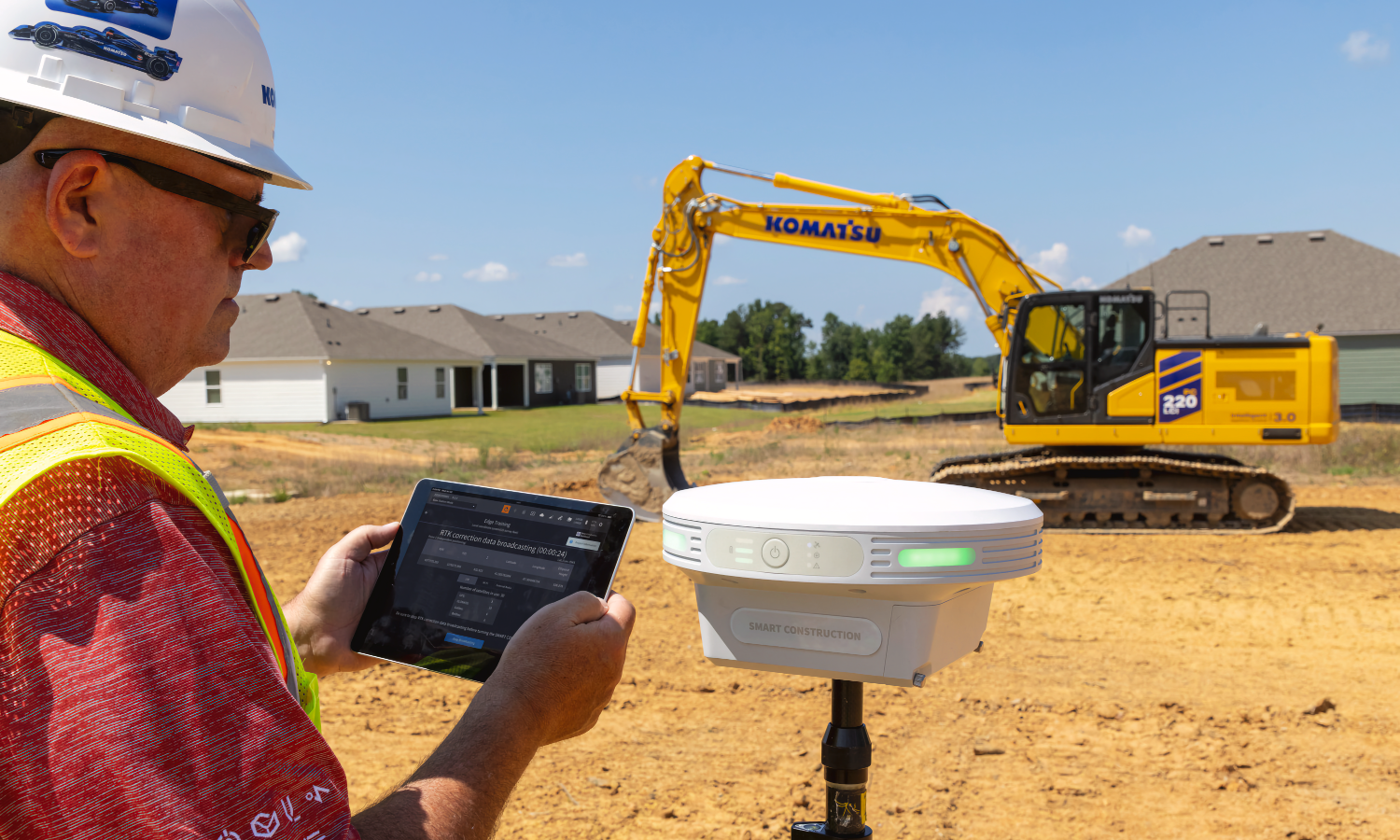

RTK Base Station Capability
Smart Construction Edge can send GNSS corrections to machine control and process drone data at the same time without disruption to production or processing.
What’s in the box

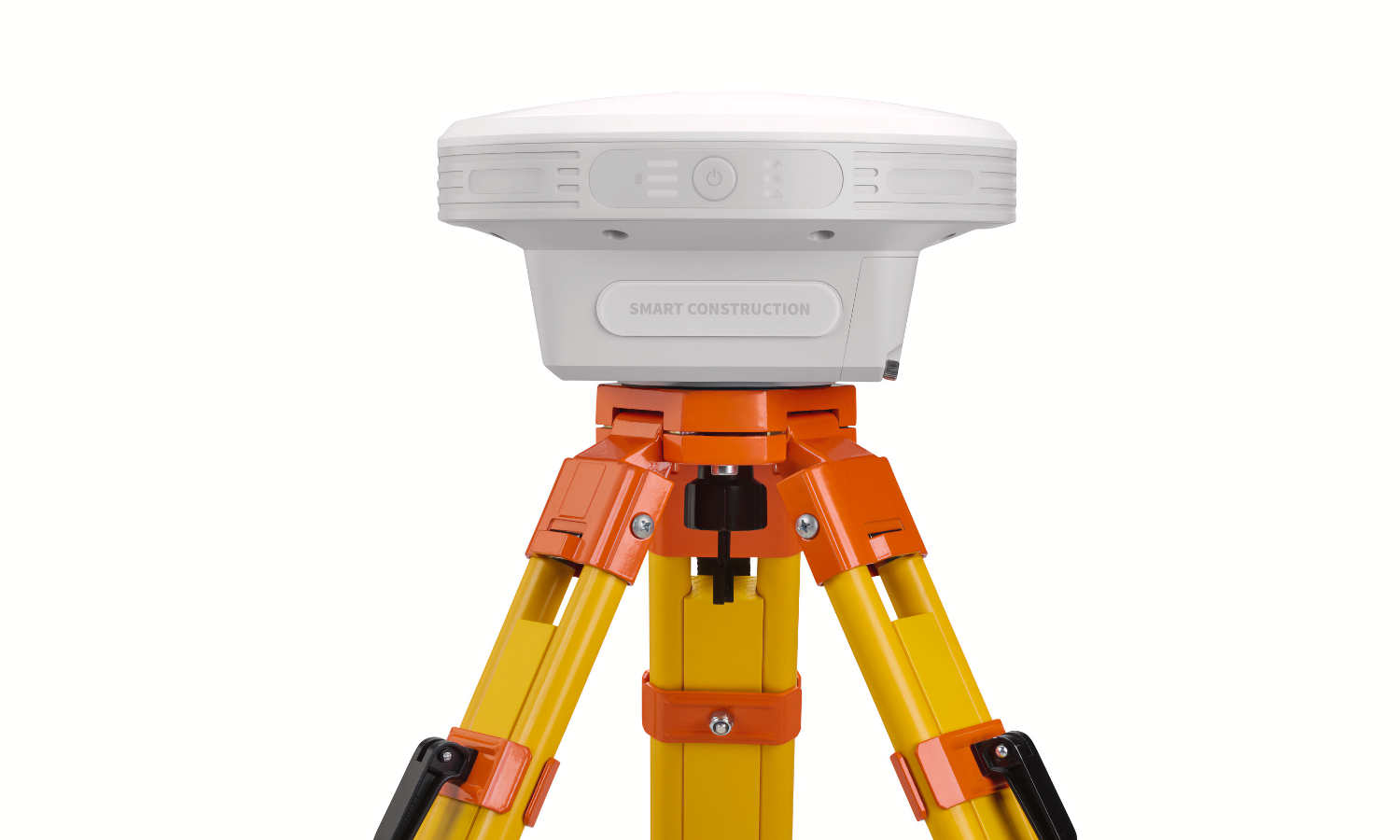

- Smart Construction Edge Main Unita
- Rechargeable Batteries (x2)b
- AC Power Adapterc
- AC Adapter Power Cabled
- USB-to-Serial Cable (for External Radio Connectivity)e
- SD Card Adapterf
- Wi-Fi Adapterg
- Apple iPad (with Charging Cable)h
- Nano SIM Cardi
- SC Edge Carry casej
Specification
| Feature | Specification |
|---|---|
| Operating temperature range | -20°C to 50°C |
| Charging temperature range | 0°C to 45°C |
| Storage temperature range | -20°C to 50°C |
| Input voltage | 19.5V DC |
| Power consumption (standard) | 13.3W (broadcasting RTK corrections via LTE) |
| Power consumption (maximum) | 87.5W (generating point cloud while charging batteries) |
| Electrostatic resistance | ±8 kV |
| Operating hours | Approx. 12 hours |
| Charging time | Approx. 5 hours (using EdgeBox and power cable) |
| Dust/Water resistance | IP65 equivalent (third-party tested) |
| External dimensions (W × D × H) | 300 × 300 × 150 mm |
| Body weight (with battery) | Approx. 4.0 kg |
| Body weight (without battery) | Approx. 2.7 kg |
| Total weight (with case & accessories) | Approx. 8.3 kg |
| Housing material | AES top cover; Magnesium die-cast main frame & bottom case |
| External interfaces | USB-A ×1, USB-C ×1, SD card (UHS-I SDR104), Nano SIM |
| SoM platform | NVIDIA Jetson Xavier NX |
| GPU | 384-core NVIDIA Volta with 48 Tensor cores |
| CPU | 6-core NVIDIA Carmel ARM v8.2 (64-bit), 6MB L2 + 4MB L3 |
| RAM | 16GB 128-bit LPDDR4x (59.7 GB/s) |
| Internal storage (eMMC) | 16GB |
| SSD storage | 256GB |
| Wired LAN | 10/100/1000 BASE-T |
| Wireless LAN | 2.4GHz 802.11b/g/n |
| LTE Bands |
FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
TDD: B38/B39/B40/B41
|
| WCDMA / GSM | WCDMA: B1/B2/B4/B5/B6/B8/B19; GSM: 850/900/1800/1900 |
| GNSS | GPS (L1C/A, L2C); QZSS (L1C/A, L2C); GLONASS (L1OF/L2OF); Galileo (E1BC/E5b); BeiDou (B1I, B2I) |
| Included accessories | AC adapter (100–240V → 19.5V/100W), USB-serial cable (2m ×1), Batteries ×2 (37V 2,518mAh), Power cable (2m ×1) |
